產品描述

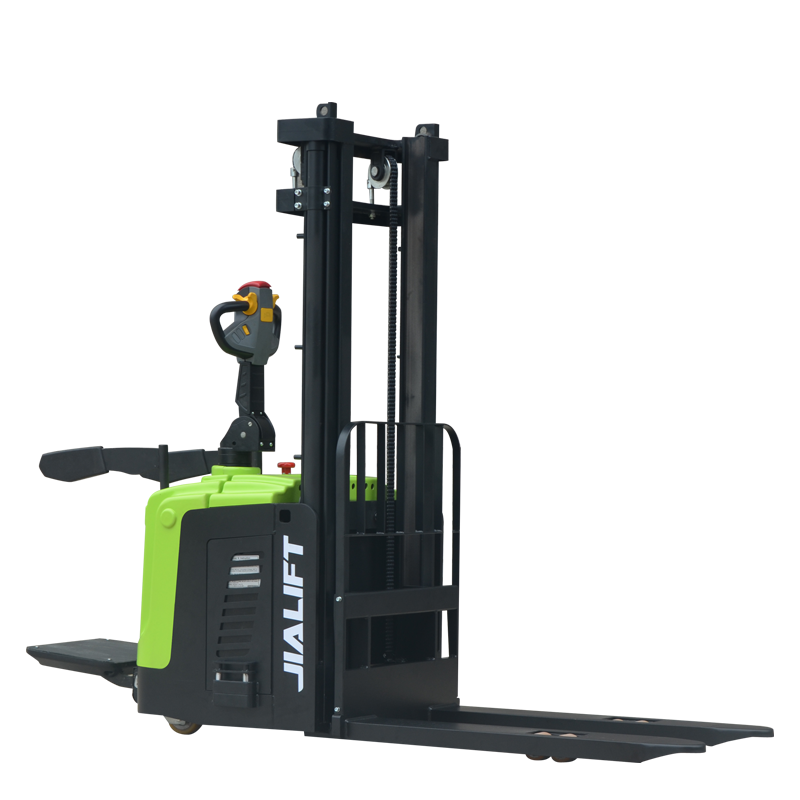

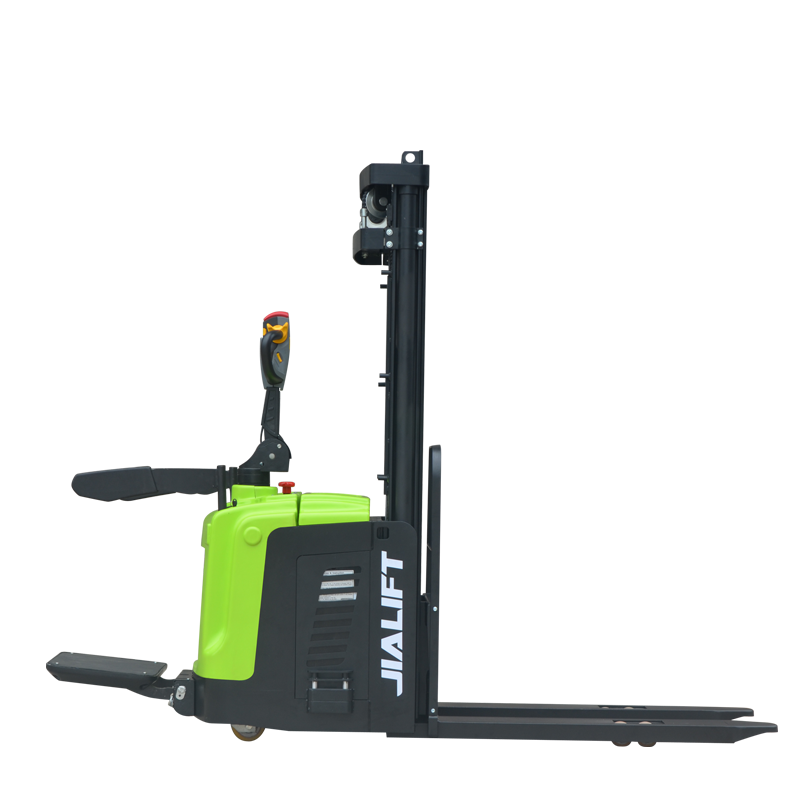

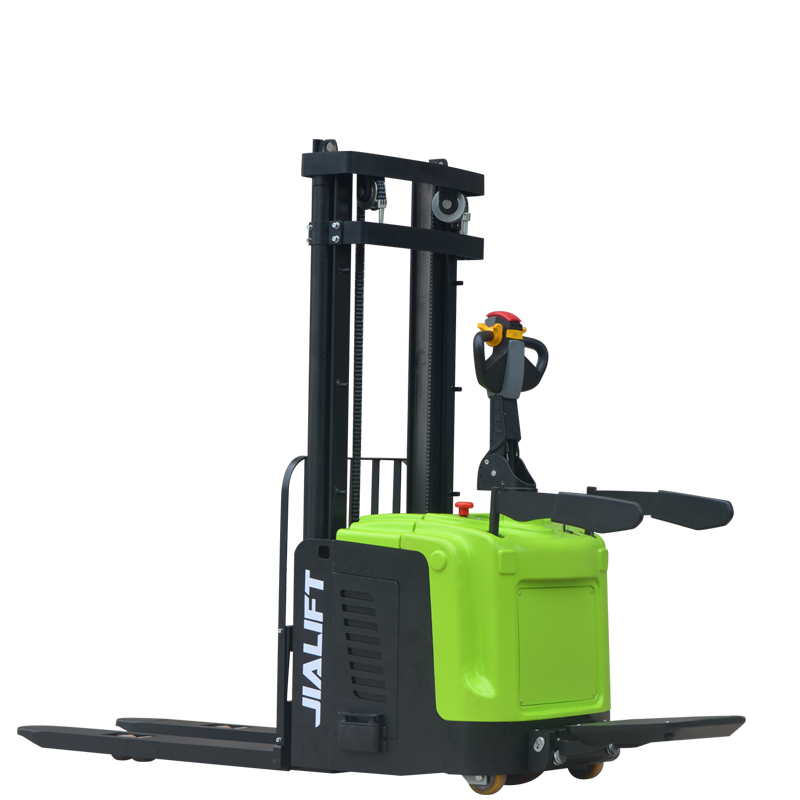

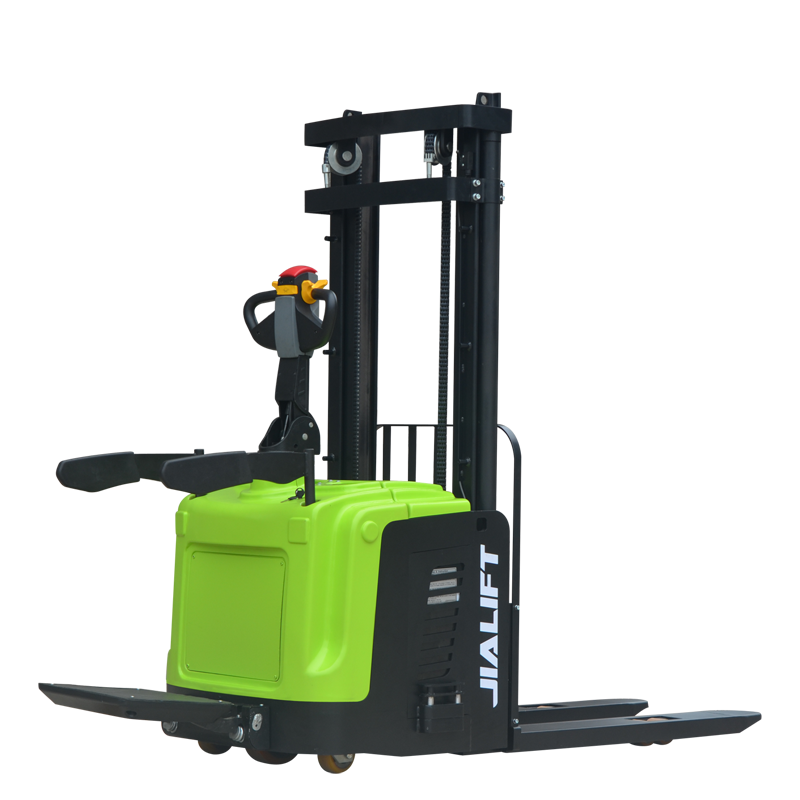

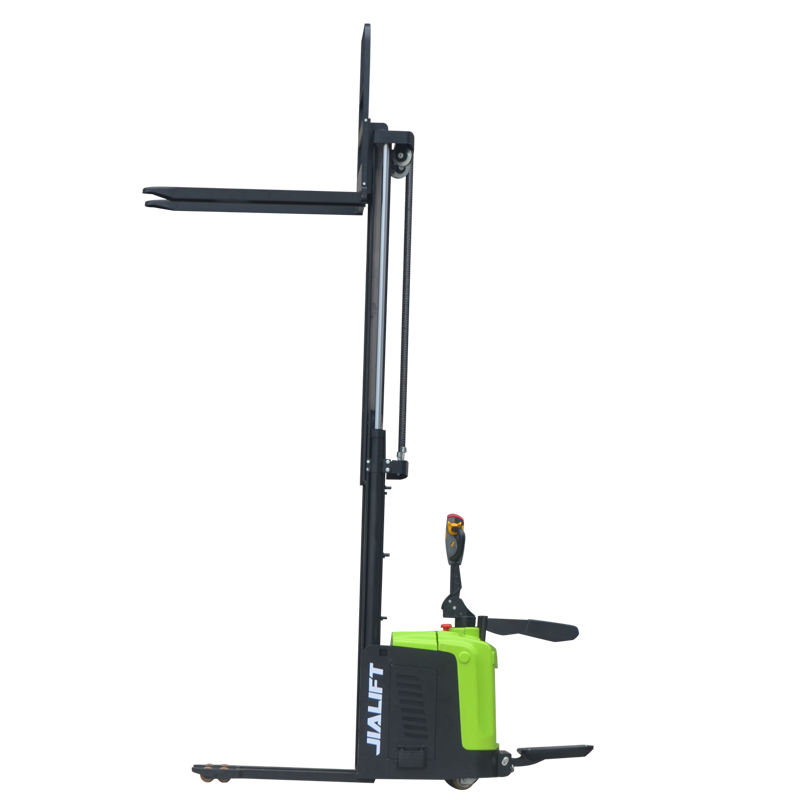

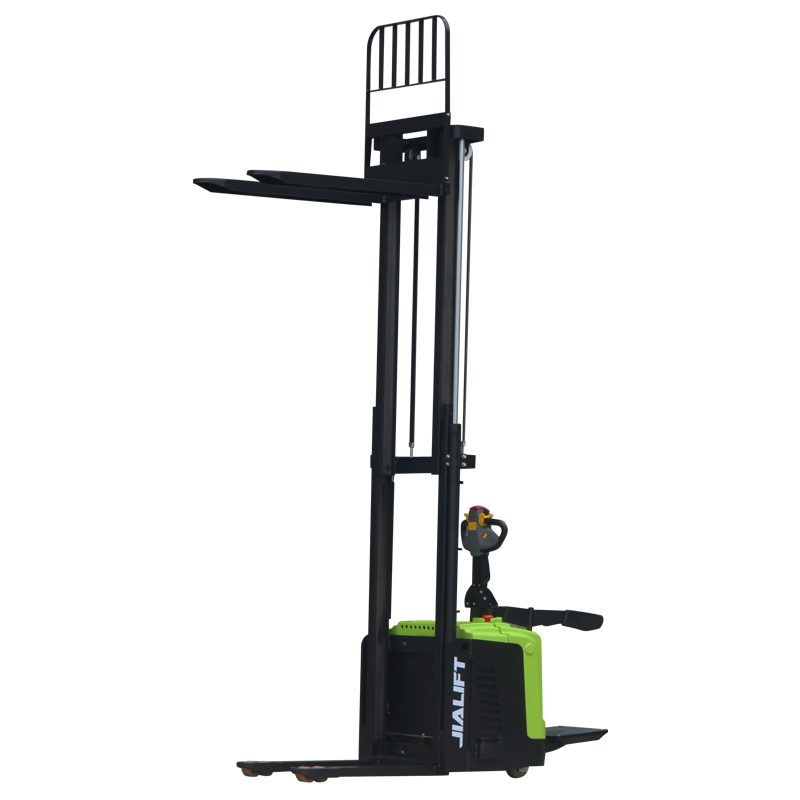

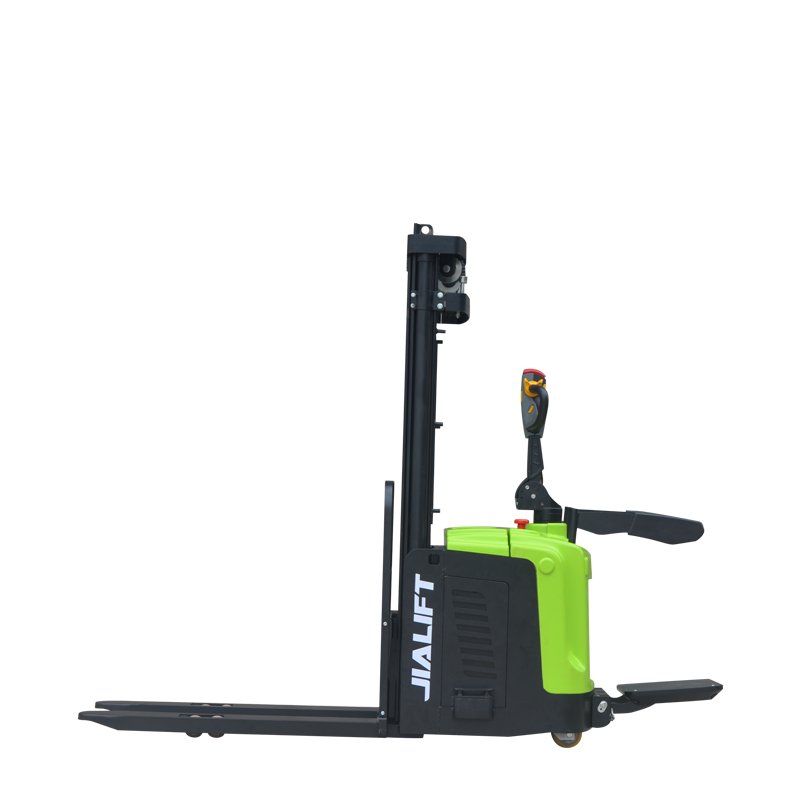

| 全電動托盤堆垛車(雙起升)參數Technical Data | |||||||||
| 特征Charactenistics | |||||||||
| 1.01 | 型號 | Model | CL1525GC | CL1530GC | CL1536GC | CL2050GC | CL2030GC | CL2036GC | |
| 1.02 | 驅動方式 | Power unit | 電動(Electric) | ||||||
| 1.08 | 操作方式 | Operation | 站駕式(Standing on) | ||||||
| 1.04 | 額定載荷能力 | Ratod traction weight | Q(kg) | 1500 | 2000 | ||||
| 1.06 | 門架提升承載能力 | Load capacity of the mast | Q(kg | 100 | 950 | 800 | 1200 | 1150 | 1000 |
| 1.06 | 載荷中心距 | Load centre | c(mm) | 600 | |||||
| 1.07 | 前懸距 | Axle centre to fork face | x(mm) | 848 | |||||
| 1.08 | 軸距 | Wheel base | y(mm) | 1472 | |||||
| 1.09 | 自重(含電瓶） | Service weight with battery | kg | 1032 | 1072 | 1120 | 1105 | 1145 | 1190 |
| 輪子、底盤Wheels/Tyres | |||||||||
| 2.03 | 輪胎類型 | Wheels type | 聚氨酯(PU) | ||||||
| 2.04 | 驅動輪尺寸 | Driving wheel size | φxw(mm) | φ250×75 | |||||
| 2.05 | 承載輪尺寸 | Bearing wheel size | φxw(mm) | φ480×70 | |||||
| 2.06 | 平衡輪尺寸 | Additional wheels(dimensions) | φxw(mm) | φ115×55 | |||||
| 2.07 | 驅動輪，平衡輪/承載輪數量(x=驅動輪） | Wheels,number front/rear (x =drven) | 1x,2/4 | ||||||
| 2.08 | 輪距，驅動端 | Track widith | b10(mm) | 580 | |||||
| 2.09 | 輪距，承載端 | Track width | b11(mm) | 505/390 | |||||
| 尺寸Dimensions | |||||||||
| 3.01 | 最低門架高度 | Free lift | h1(mm) | 1799 | 2049 | 2349 | 1799 | 2049 | 2349 |
| 3.02 | 自由提升高度 | Lift | h2 (mm) | 0 | 0 | 0 | 0 | 0 | 0 |
| 3.03 | 提升高度 | Height of mast,extended | h3 (mm) | 2530 | 3030 | 3630 | 2530 | 3030 | 3630 |
| 3.04 | 門架最大高度 | Height of seat/stand-on platform | h4(mm) | 2943 | 3443 | 4043 | 2943 | 3443 | 4043 |
| 3.06 | 初始提升 | The initial boost | h5 (mm) | 120 | |||||
| 3.06 | 操作位置手柄桿最小/最大高度 | Overall height(With handle) | h14(mm) | 1065/1365 | |||||
| 3.07 | 貨叉最低高度 | Lowered fork height | h13(mm) | 90 | |||||
| 3.08 | 整車長度 | Overall length | l1(mm) | 2000 | |||||
| 3.09 | 車體長度 | Length to fork face | l2(mm) | 850 | |||||
| 3.10 | 整車寬度 | Overall width | b1/b2 (mm) | 808 | |||||
| 3.11 | 貨叉尺寸 | Fork dimensions | s/e/l(mm) | 60/180/1150 | |||||
| 3.12 | 貨叉外寬 | Width of forks | b5(mm) | 685/570 | |||||
| 3.13 | 軸距中心處離地間障 | Min.Ground clearance | m2(mm) | 28 | |||||
| 3.14 | 通道寬度：1000x1200托盤(1200跨貨叉放置) | Aisle width with pallet 1000x1200 across forks | Ast (mm) | 2530 | |||||
| 3.15 | 通道寬度：800x1200托盤(1200沿貨叉放置) | Aisle width with pallet 800 x 1200 along forks | Ast (mm) | 2443 | |||||
| 3.16 | 轉彎半徑 | Min.Turning radius | Wa (mm) | 1710 | |||||
| 性能Performance | |||||||||
| 4.01 | 行走速度，滿載/空載 | Travel speed,with/without load | (kmh) | 5.2/5.5 | |||||
| 4.02 | 提升速度，滿載/空載 | Lilting speed,with/without load | (mm/s) | 100/130 | |||||
| 4.03 | 下降速度，滿載/空載 | Lowering speed,with/wthout load | (mm/s) | 180/140 | |||||
| 4.04 | 最大爬坡度，滿載/空載 | Maximum clmbing ablity,with/wihout load | (%) | 6/8 | |||||
| 4.05 | 制動類型 | Service brake | 電磁制動(Electromagnetic) | ||||||
| 電機Drive | |||||||||
| 5.01 | 驅動電機功率 | Drive motor,60 minute raling | (kW) | 1.5 | 2.5 | ||||
| 5.02 | 起升電機功率 | Lift motor rating at S3 15% | (kW) | 2.2 | |||||
| 5.03 | 蓄電池電壓/容量 | Battery voltage/rated capacity | (V/Ah) | 24/210 | |||||
| 5.04 | 電池總量 | Battery weight (±5%) | (kg) | 190 | |||||
| 其它Other | |||||||||
| 6.01 | 驅動控制類型 | Type of drive control | 交流速度控制(AC) | ||||||
| 6.02 | 噪音水平 | Noise level at operator's ear | (dB(A)) | ≤70 | |||||
