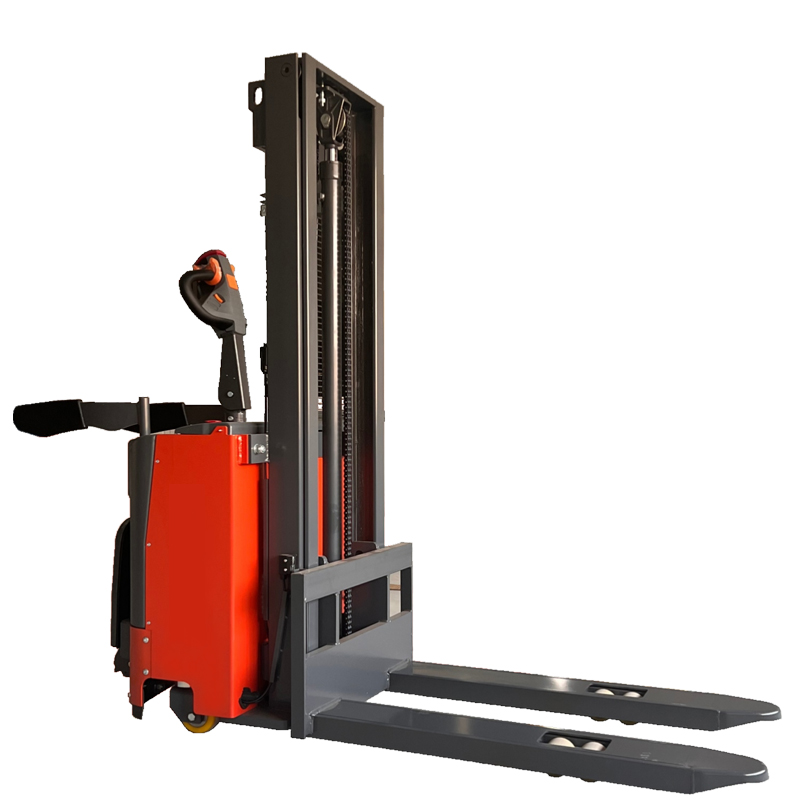

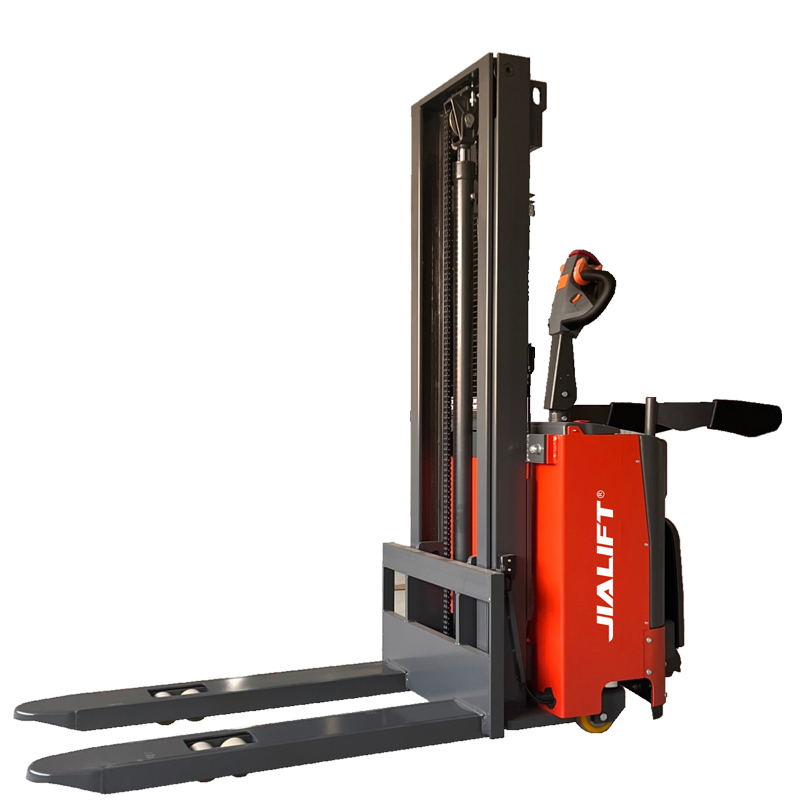

產品描述
| 全電動托盤堆垛車(E系列)參數Technical Data | |||||||
| 特征Characteristics | |||||||
| 1.01 | 型號 | Model | CL1516E | CL1526E | CL1532E | CL1536E | |
| 1.02 | 驅動方式 | Power unit | 電動(Electric) | ||||
| 1.03 | 操作方式 | Operation | 站駕式(Standing on) | ||||
| 1.04 | 額定載荷能力 | Rated traction weight | Q(t) | 1.5 | |||
| 1.05 | 載荷中心距 | Load centre | c(mm) | 600 | |||
| 1.06 | 前懸距 | Axle centre to fork face | x(mm) | 695 | |||
| 1.07 | 軸距 | Wheel base | Y(mm | 1148 | |||
| 1.08 | 自重(含電瓶) | Service weight with battery | kg | 650 | 720 | 740 | 760 |
| 輪子、底盤Wheels/Tyres | |||||||
| 2.01 | 輪胎類型 | Wheels type | 聚氨酯(PU) | ||||
| 2.02 | 驅動輪尺寸 | Driving wheel size | φxw(mm) | φ210×70 | |||
| 2.03 | 承截輪尺寸 | Bearing wheel size | φxw(mm) | φ80×70 | |||
| 2.04 | 平衡輪尺寸 | additional wheels (dimensions) | φxw(mm) | φ115×55 | |||
| 2.05 | 驅動輪，平衡輪承載輪數量(x=驅動輪) | Wheels,number front/rear (xs driven) | 1,4/2 | ||||
| 2.06 | 輪距，驅動端 | Track width | b10(mm) | 646 | |||
| 2.07 | 輪距，承載端 | Track width | b11(mm) | 390/515 | |||

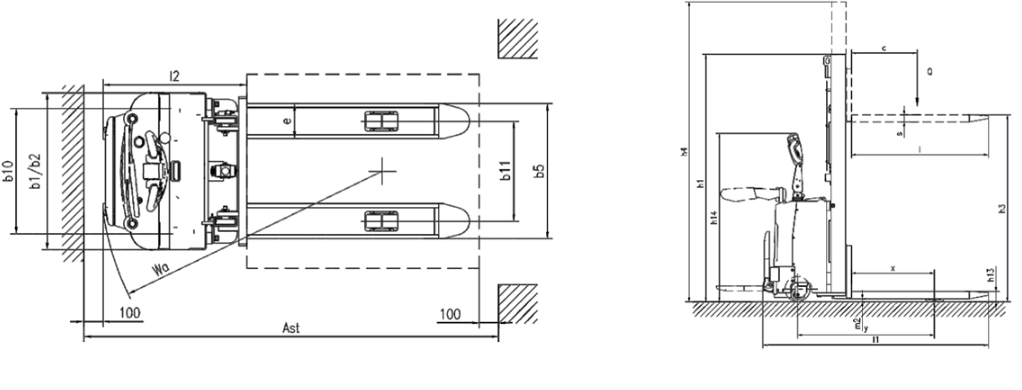

| 尺寸Dimensions | |||||||
| 3.01 | 最低門架高度 | Height of mast,lowered | h1(mm) | 2077 | 1877 | 2127 | 2327 |
| 3.02 | 提升高度 | Lift | h3(mm) | 1600 | 2600 | 3200 | 3600 |
| 3.03 | 門架最大高度 | Height of mast,extended | h4(mm) | 2077 | 3137 | 3687 | 4087 |
| 3.04 | 操作位置手柄桿最小/最大高 | Overall height(With handle) | h14(mm) | 1040/1415 | |||
| 3.05 | 貨叉最低高度 | Lowered height | h13(mm) | 86 | |||
| 3.06 | 整車長度 | Overall length | 11(mm) | 1890 | |||
