產品描述

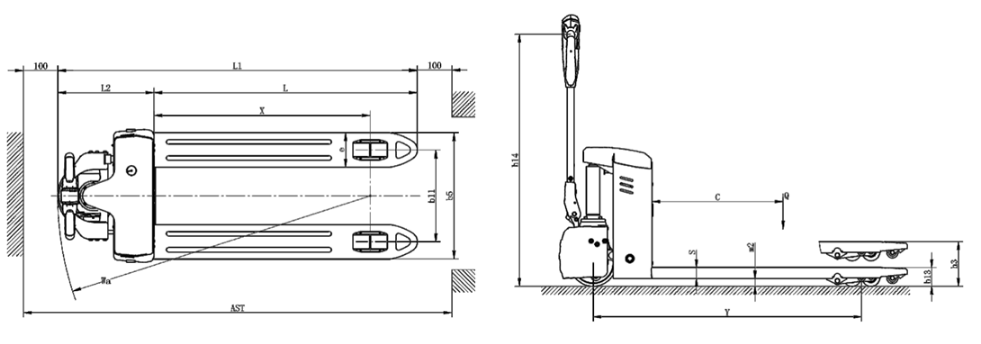

| 特征Characteristics | ||||||
| 1.01 | 型號 | Model | SL15S6 | SL20S6 | ||
| 1.02 | 驅動方式 | Power unit | 電動(Electric) | |||
| 1.03 | 操作方式 | Operation | 步行式(Pedestrian) | |||
| 1.04 | 額定載荷能力 | Rated traction weight | Q(kg) | 1500 | 2000 | |
| 1.05 | 載荷中心距 | Load centre | c(mm) | 600 | ||
| 1.06 | 前懸距 | Axle centre to fork face | x(mm) | 944 | ||
| 1.07 | 軸距 | Wheel base | y (mm) | 1210 | ||
| 1.08 | 自重(含電瓶) | Service weight with battery | kg | 140 | 148 | |
| 輪子、底盤Wheels/Tyres | ||||||
| 2.01 | 輪胎類型 | Wheels type | 聚氨酯(PU) | |||
| 2.02 | 驅動輪尺寸 | Driving wheel size | φxw(mm) | φ210×70 | ||
| 2.03 | 承載輪尺寸 | Bearing wheel size | φxw(mm) | φ80×60 | ||
| 2.04 | 驅動輪，平衡輪/承載輪數量(x=驅動輪) | Wheels,number front/rear (x =driven) | 1x/4 | |||
| 2.05 | 輪距，承載端 | Track width | b11(mm) | 400/535 | ||
| 尺寸Dimensions | ||||||
| 3.01 | 提升高度 | Lift | h3 (mm) | 200 | ||
| 3.02 | 操作位置手柄桿最小/最大高度 | Overall height(With handle | h14(mm) | 775/1115 | ||
| 3.03 | 貨叉最低高度 | Fork Height,Lowered | h13(mm) | 85 | ||
| 3.04 | 整車長度 | Overall length | l1(mm) | 1570 | ||
| 3.05 | 車體長度 | Length to fork face | l2(mm) | 420 | ||
| 3.06 | 整車寬度 | Overall width | b1/b2(mm) | 580/685 | ||
| 3.07 | 貨叉尺寸 | Fork dimensions | s/e/l(mm) | 50/150/1150 | ||
| 3.08 | 貨叉外寬 | Width of forks | b5(mm) | 550/685 | ||
| 3.09 | 軸距中心處離地間隙 | Min.Ground clearance | m2(mm) | 35 | ||
| 3.10 | 通道寬度：1000x1200托盤(1200跨貨叉放置) | Aisle width with pallet 1000x 1200 across forks | Ast(mm) | 1770 | ||
| 3.11 | 通道寬度：800x1200托盤(1200沿貨叉放置) | Aisle width with pallet 800 x 1200 along forks | Ast(mm) | 1820 | ||
| 3.12 | 轉彎半徑 | Min.Turning radius | Wa(mm) | 1364 | ||
| 性能Performance | ||||||
| 4.01 | 行走速度，滿載/空載 | Travel speed,laden/unladen | (km/h) | 4.2/4.5 | ||
| 4.02 | 提升速度，滿載/空載 | Lifting speed,with/without load | (mm/s) | 30/36 | ||
| 4.03 | 下降速度，滿載/空載 | Lowering speed,with/without load | (mm/s) | 55/40 | ||
| 4.04 | 最大爬坡度，滿載/空載 | Maximum climbing ability,with/without load | (%) | 5/10 | ||
| 4.05 | 制動類型 | Service brake | 電磁制動(Electromagnetic) | |||
| 電機Drive | ||||||
| 5.01 | 驅動電機功率 | Drive motor,60 minute rating | (kW) | 0.75 | 1 | |
| 5.02 | 起升電機功率 | Lift motor rating at S3 15% | (kW) | |||
| 5.03 | 蓄電池電壓/容量 | Battery voltage/rated capacity | (V/Ah) | 12*2/65 | 48/20 | 48/30 |
| 5.04 | 電池重量(±5%) | Battery weight (±5%) | (kg) | 16.3*20 | 12 | 17 |
| 其它Other | ||||||
| 6.01 | 驅動控制類型 | Type of drive control | (dB(A)) | 直流速度控制(DC) | ||
| 6.02 | 噪音水平 | Noise level at operator 's ear | ≤70機械轉向 | |||
| 6.03 | 轉向類型 | Type of steering | 機械轉向(Mechanical) | |||
