產品描述
| 牽引車(座駕式)參數Technical Data | |||||||
| 特征Characteristics | |||||||
| 1.01 | 型號 | Model | TS40 | TS60 | T30 | TW10 | |
| 1.02 | 驅動方式 | Power unit | 電動(Electric) | ||||
| 1.03 | 操作方式 | Operation | 座駕式 (Seated on) | 站駕式 (Standingon) | 步行式 (Pedestrian) | ||
| 1.04 | 額定牽引重量 | Hated traction weight | Q(kg） | 4000 | 6000 | 3000 | 1000 |
| 1.05 | 軸距 | Wheel base | y(mm) | 940 | 1038 | 321 | |
| 1.06 | 白重(含電瓶) | Service weight with battery | kg | 810 | 1000 | 768 | 116 |
| 輪子、底盤Wheels/Tyres | |||||||

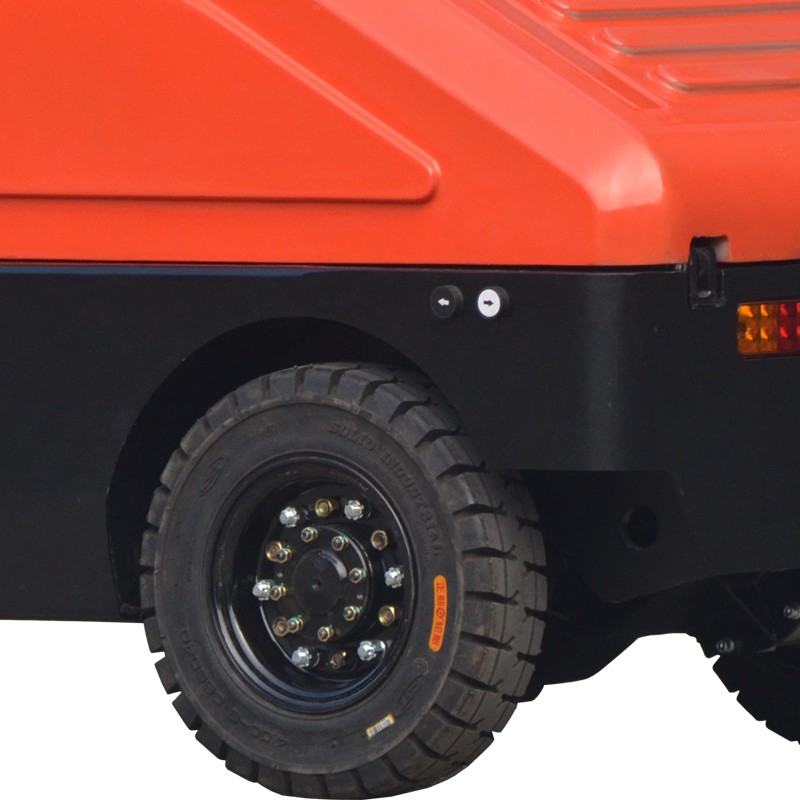

| 2.01 | 輪胎類型，驅動輪/承載 | Wheels type | 實心胎 (Solid) | 聚氨酯 (PU) | 橡膠輪 (Rubber wheel) | ||
| 2.02 | 輪前輪尺寸 | Driving wheel size | (mm) | 4.00-8 | φ250x75 | φ254×85 | |
| 2.03 | 后輪尺寸 | Bearing wheel size | (mm) | 4.00-8 | φ180x76 | φ75x32 | |
| 2.04 | 車輪數量，前輪/后輪(x=驅動輪） | Wheels,number front/rear (x=driven) | 1/2x | 2/1x | — | ||
| 2.05 | 后輪距 | Track width | b11(mm） | 871 | 618 | 441 | |
| 尺寸Dimensions | |||||||
| 3.01 | 整車高度 | The vehicle height | h6(mm） | 1395 | 1150 | 912/1155 | |

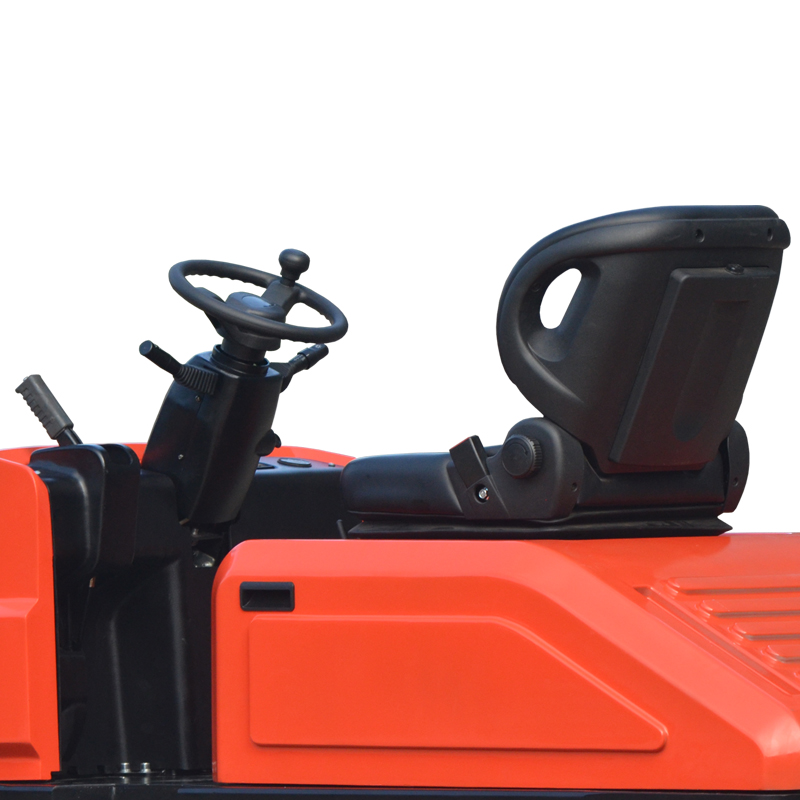

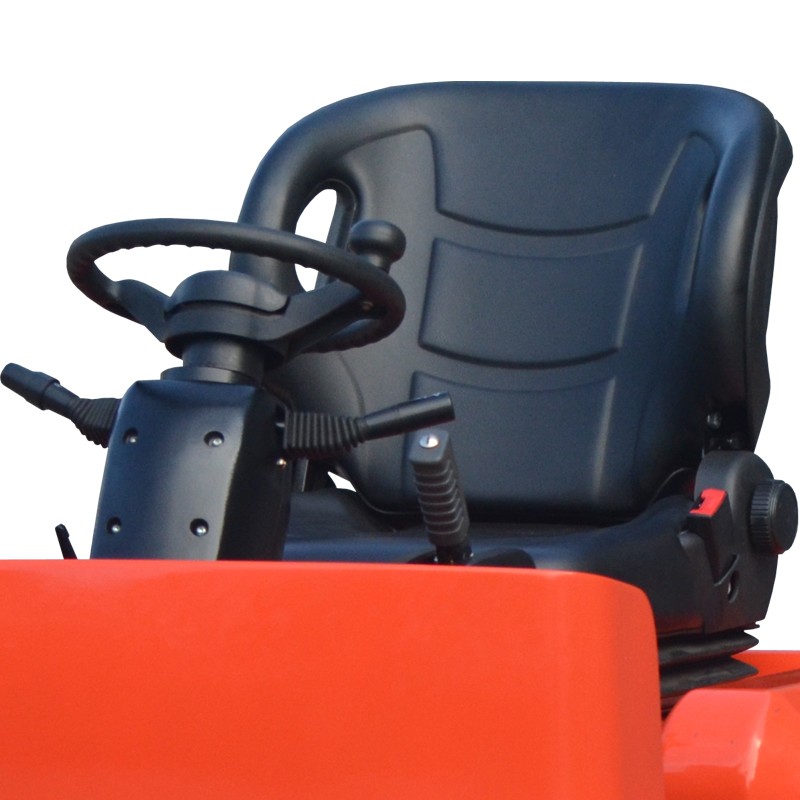

| 3.02 | 座椅面高度 | Seat height | h7(mm) | 950 | 750 | — | |
| 3.03 | 牽引銷中心高度范圍 | Coupler height | h10(mm | 300/350/400 | 233/328/343/438 | 275/310/34 | |
| 3.04 | 后懸距 | Suspension from | 15(mm) | 441 | — | — | |
| 3.05 | 整車長度 | Overall length | 11(mm) | 1746 | 1395 | 1184 | |
| 3.06 | 整車寬度 | Overall width | b1/b2(mm) | 985 | 808 | 526 | |
| 3.07 | 軸距中心處離地間隙 | Min.Ground clearance | m2(mm) | 138 | 65 | 67 | |
| 3.08 | 轉彎半徑 | Min.Turning radius | Wa(mm) | 1575 | 1242 | 850/902/916 | |
| 性能Performance | |||||||
| 4.01 | 行走速度，滿載/空載 | Travel speed,laden/unladen | km/h | 8/12 | 7/12 | 6/7 | 3.8/4.2 |
| 4.02 | 最大牽引力 | Max.pulling power | N | 3200 | 5500 | 2000 | 600 |
| 4.03 | 爬坡度，滿載/空載 | Gradeability.laden/unladen | 0 | 5/10 | 3/15 | 3/10 | |
| 4.04 | 制動類型 | Brake | 機械+液壓(Mechanical+Hydraulic) | 電磁制動 (Electromagnetic) | |||
| 電機Drive | |||||||
| 5.01 | 驅動電機功率 | Dye motor | kW | 5 | 3 | 0.4 | |
| 5.02 | 電瓶電壓/容量 | Battery voltage/Battery capacity | V/Ah | 24/240 | 48/240 | 24/210 | 24/32 |
| 5.03 | 電池重量(±5%) | Battery weight (±5%) | kg | 230 | 430 | 190 | 19.6 |
| 其 它 Other | |||||||
| 6.01 | 驅動控制類型 | Type of drive control | 交流速度控制(AC) | ||||

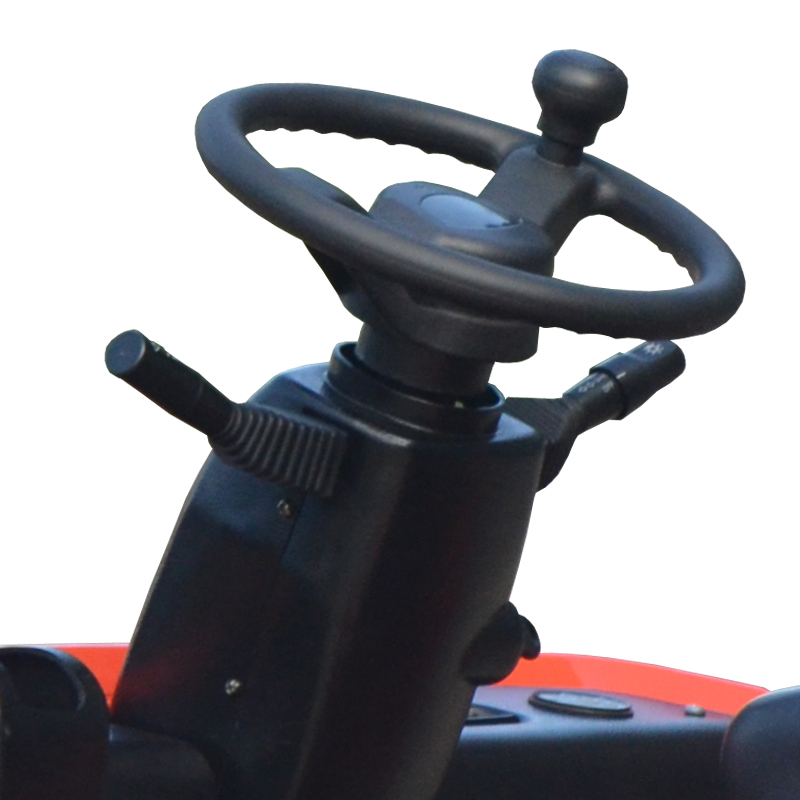

| 6.02 | 轉向類型 | Type of steering | 電子助力(Electric) | — | |||
| 6.03 | 噪音等級 | Noiselevel at operator 's ear | dB(A) | ≤70 | |||

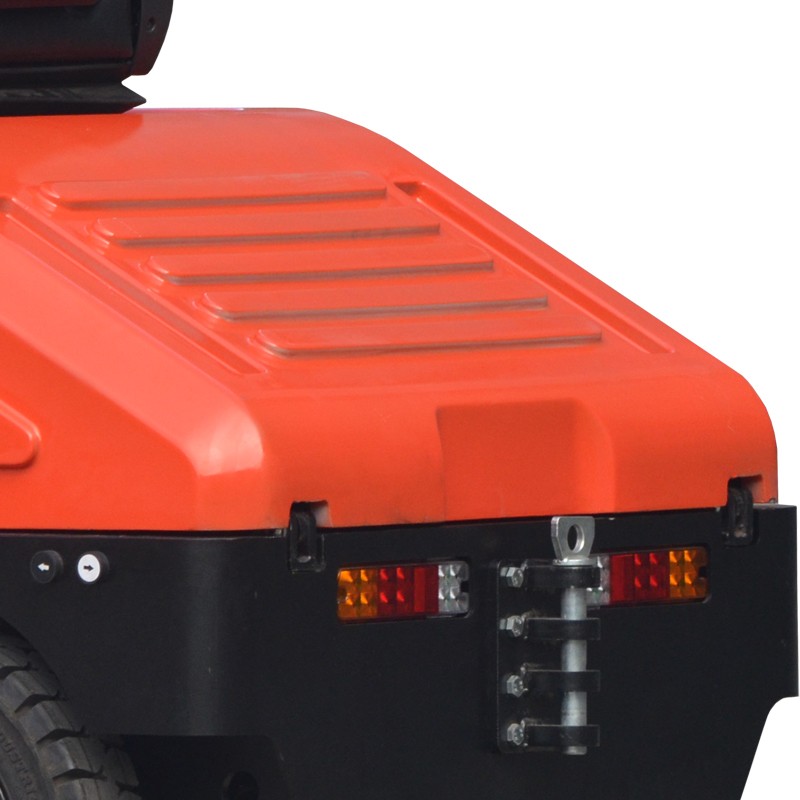

| 6.04 | 牽引耦合，依據DIN15170類型 | Traction coupling according to DIN15170 type | 插銷式(Bolt) | — | |||
