產品描述
EGS12FD電動平衡重式叉車參數表 | ||||
| 特征 distinguishing mark | ||||
| 1.1 | 1.2 | Manufacturer | 加力 JIALIFT | |
| 1.2 | 型號 | Manufacturer's type designation | EGS1245FD | |
| 1.3 | 驅動方式 | Drive | 電動 Electric | |
| 1.4 | 駕駛方式 | Operator type | 座駕式 | |

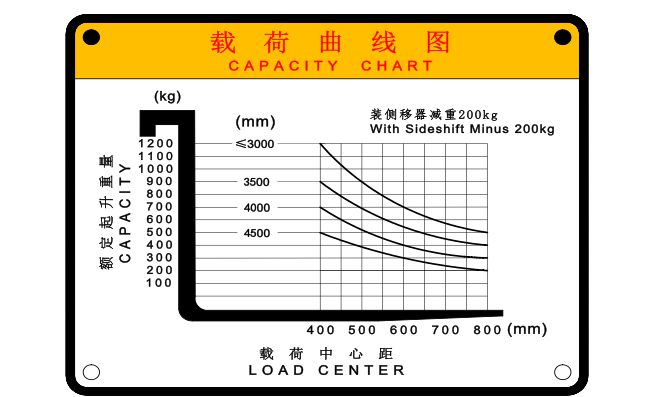

| 1.5 | 額定載荷 | Load capacity | Q(kg) | 1200 |
| 1.6 | 載荷中心距 | Load center distance | c (mm) | 400 |
| 1.7 | 前懸距 | centre of drive axle to fork | x (mm) | 319 |
| 1.8 | 軸距 | Wheelbase | y (mm) | 1150 |
| 重量Weight | ||||
| 2.1 | 自重（含電瓶） | Service weight （include battery） | kg | 2212 |
| 2.2 | 軸負載，滿載時前/后軸 | Axle loading,laden front/rear | kg | 2905/307 |
| 2.3 | 軸負載，空載時前/后軸 | Axle loading,unladen front/rear | kg | 1105/1007 |
| 輪胎 ，底盤Types,Chassis | ||||
| 3.1 | 輪子類型，驅動輪/承載輪 | Tyre type driving wheels/loading wheels | 實心輪胎 | |
| 3.2 | 輪子尺寸，前輪 | Tyre size,front | mm | 4.00-8 |
| 3.3 | 輪子尺寸，后輪 | Tyre size ，rear | mm | 3.50-5 |
| 3.4 | 輪，前后數量(x=驅動輪) | Wheels,number front rear(x=driven wheels) | mm | 2x/2 |
| 3.5 | 前輪輪距 | Tread,front | b10 (mm) | 760 |
| 3.6 | 后輪距，承載端 | Thread,rear | b11(mm) | 185 |

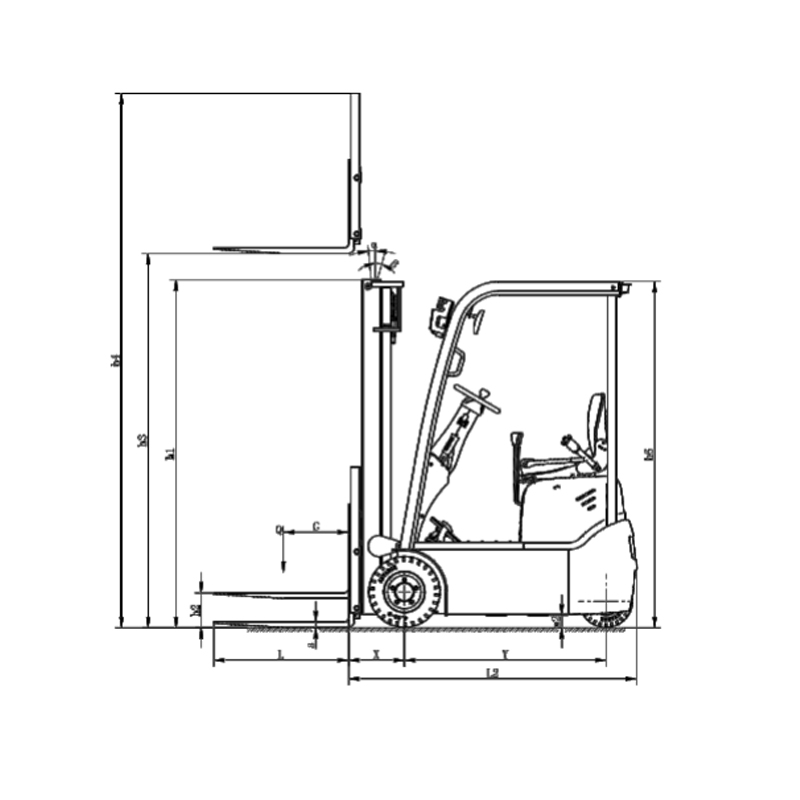

| 尺寸 Dimensions | ||||
| 4.1 | 門架/貨叉傾斜 前傾/后傾 | Mast/fork carriage tilt, forward/backward | a/b (°) | 5/5 |
| 4.2 | 門架縮回時高度 | Height,mast lowered | h1(mm) | 1985 |
| 4.3 | 自由提升高度 | Free lift | h2(mm) | 1107 |
| 4.4 | 起升高度 | Lift height | h3 (mm) | 4500 |
| 4.5 | 作業時門架最大高度 | Maximum height of gantry | h4(mm) | 5378 |
| 4.6 | 貨叉下降后叉面高度 | Lowered height | h13(mm) | 35 |
| 4.7 | 護頂架高度 | Height of overhead guard (cabin) | h6 (mm) | 1975 |
| 4.8 | 座位高度 | Seat height | h7(mm) | 950 |
| 4.9 | 整車長度 | Overall length | l1 (mm) | 2415 |
| 4.10 | 到貨叉垂直面的長度 | Length to face of forks | l2(mm) | 1645 |
| 4.11 | 整體寬度 | Overall width | b1 (mm) | 872/860 |
| 4.12 | 貨叉尺寸 | Fork dimensions | s/ e/ l (mm) | 35/100/770 |
| 4.13 | 貨叉外寬 | Distance between fork-arms | b5 (mm) | 220-800 |
| 4.14 | 軸距中心處離地間隙 | Ground clearance, center of wheelbase | m2 (mm) | 69 |

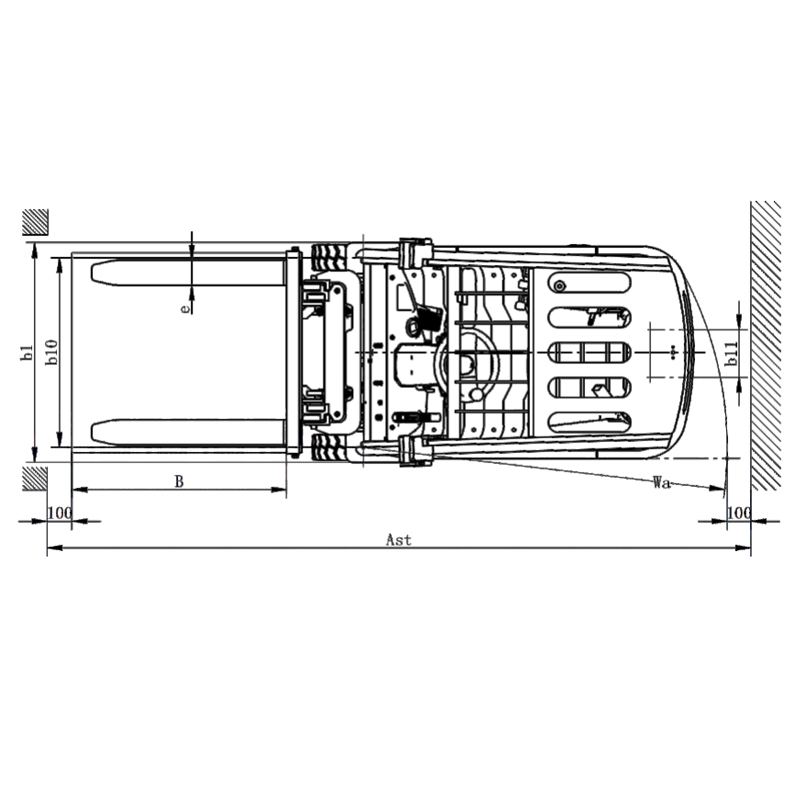

| 4.15 | 托盤為 1200寬 × 1000長的通道寬度 | Aisle width for pallets 1000 × 1200 crossways | Ast (mm) | 2975 |
| 4.16 | 托盤為800寬 × 1200長的通道寬度 | Aisle width for pallets 800 × 1200 lengthways | Ast (mm) | 3175 |
| 4.17 | 最小轉彎半徑 | Turning radius | Wa(mm) | 1540 |
| 性能參數 Performance data | ||||
| 5.1 | 行駛速度，滿載/空載 | Travel speed, laden/ unladen | km/h | 7/9 |
| 5.2 | 起升速度，滿載/空載 | Lifting speed, laden/ unladen | m/ s | 0.183/0.282 |
| 5.3 | 下降速度，滿載/空載 | Lowering speed, laden/ unladen | m/ s | 0.213/0.226 |
| 5.4 | 最大爬坡度，滿載/空載 | Max. gradeability, laden/unladen | % | 10/15 |
| 5.5 | 加速時間,滿載/空載 | Acceleration time with/without load | s | / |
| 5.6 | 制動類型 | Service brake type | 液壓制動 Hydraulic | |
| 電機，動力源 Electric-engine | ||||
| 6.1 | 驅動電機額定功率 S2 60分鐘 | Drive motor rating S2 60 min | kW | 3.0 |
| 6.2 | 起升電機額定功率 S3 15% | Lift motor rating at S3 15% | kW | 4 |
| 6.3 | 電瓶電壓/標稱容量 K5 | Battery voltage/nominal capacity K5 | V/Ah | 24/400 |
| 6.4 | 電瓶重量 | Battery weight | kg | 310 |
| 6.5 | 電瓶允許最大尺寸 | The maximum allowed size battery | mm | 745/320/532 |
| 6.6 | 能耗 ，根據VDI循環 | Energy consumption acc. to VDI cycle | kW/h | － |
| 其他數據 Addition data | ||||
| 8.1 | 驅動控制類型 | Type of drive control | 交流速度控制 AC | |
| 8.2 | 轉向類型 | Steering type | 電子助力 Electronic Assistance | |
| 8.3 | 噪音等級 | Sound pressure level at the driver’s ear | dB(A) | ≤70 |
