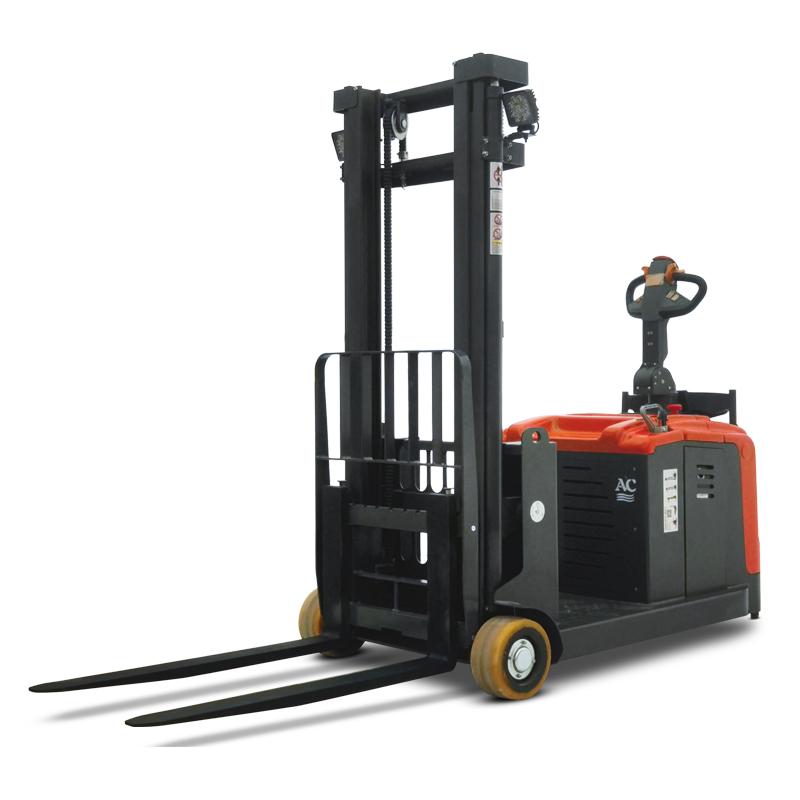

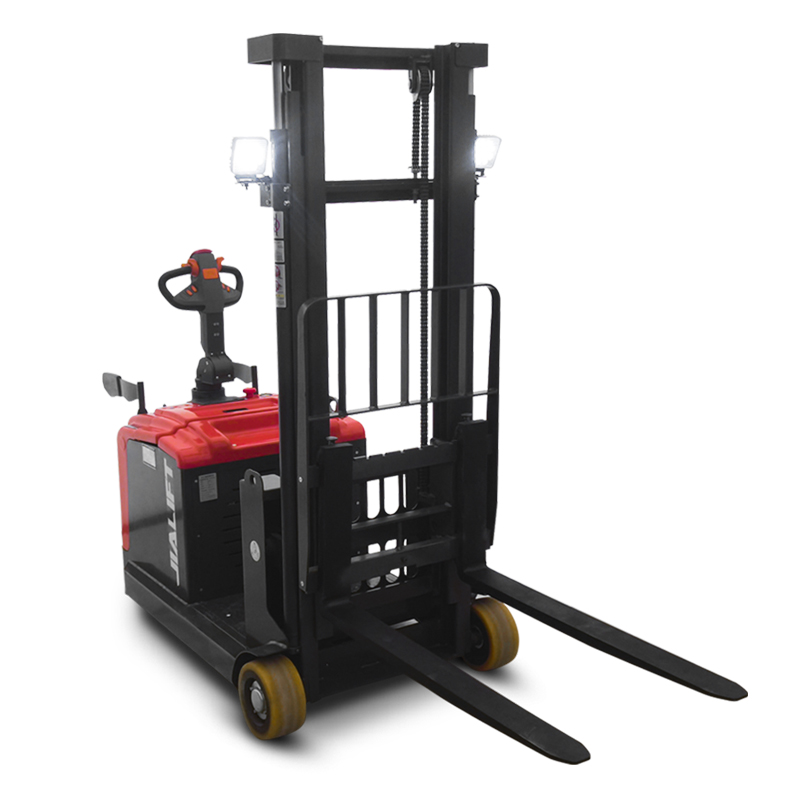

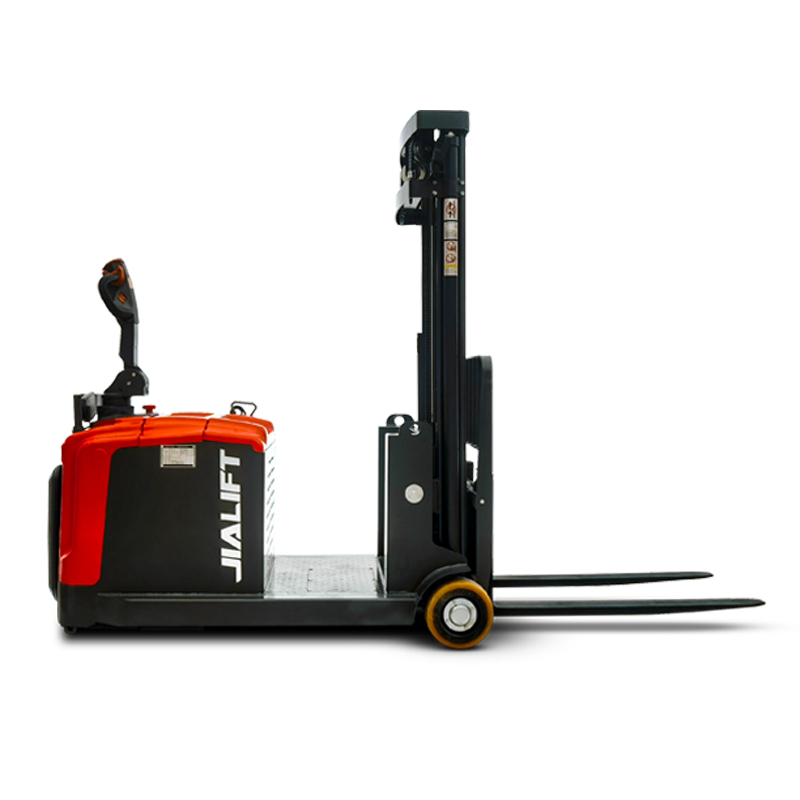

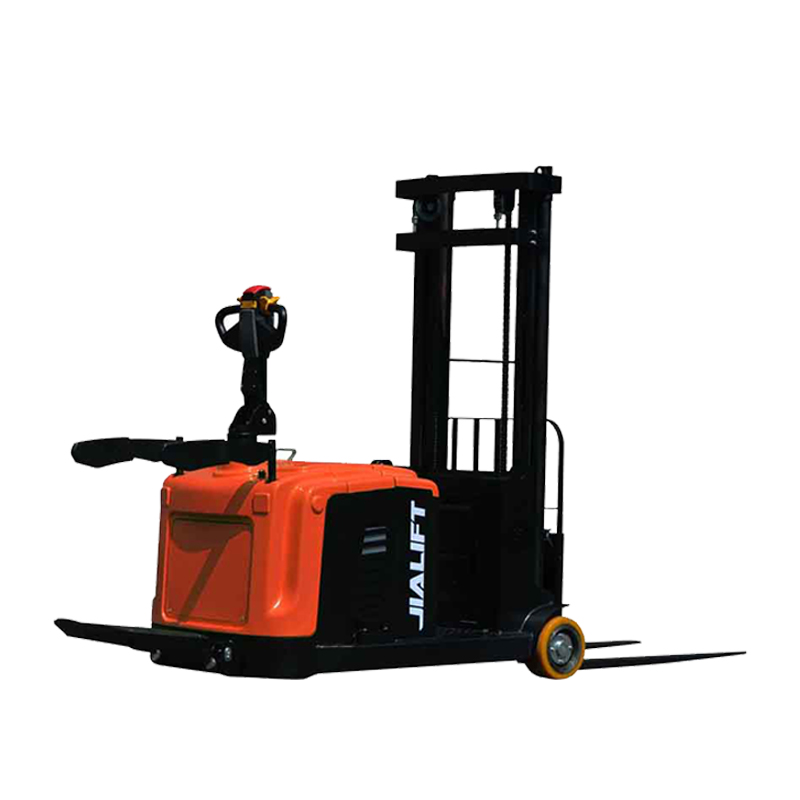

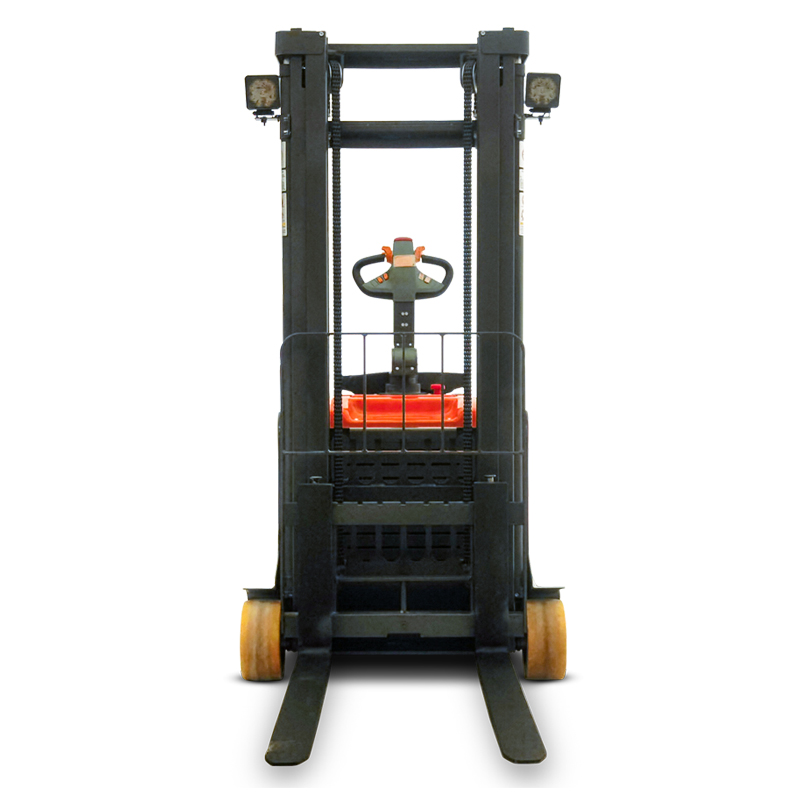

E-GL系列
1.全系標配電子助力轉向系統，助力反應非常敏銳，手柄操控舒適自如，駕駛感受更加順暢;
2.先進的交流驅動系統，電動機能得到更多的能量及更大的制動扭力，動力更強勁高效;
3.可變軸距結構設計，前軸可移動，從而變換軸距長度，更方便在狹窄的環境作業;
4.創新的多功能操作手柄設置，前傾后仰的功能也被革命性地集成在手柄上，操作更加方便快捷;
5.標配蓄電池側拉機構，更換蓄電池更加方便快速，提高工作效率。?
產品描述

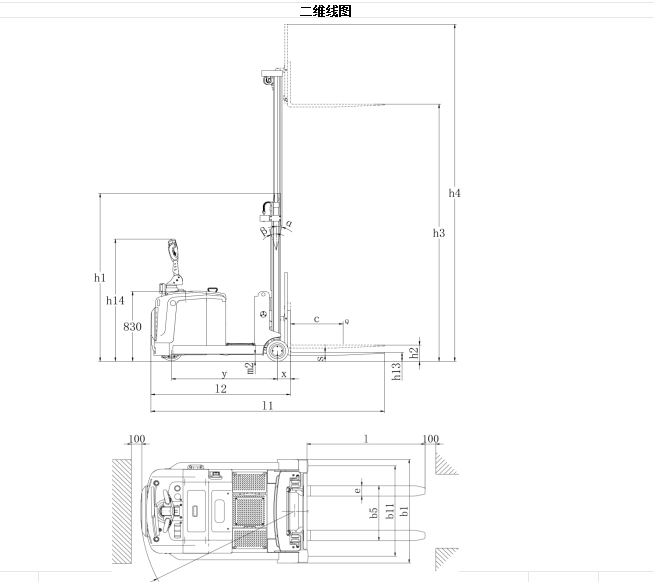

E10-15GL電動平衡重式叉車參數表 | ||||||
| 特征 distinguishing mark | ||||||
| 1.1 | 制造商 | Manufacturer | 加力 JIALIFT | |||
| 1.2 | 型號 | Manufacturer's type designation | E1030GL | E1330GL | E1530GL | |
| 1.3 | 驅動方式 | Drive | 電動 Electric | |||
| 1.4 | 駕駛方式 | Operator type | 站駕式 | |||
| 1.5 | 額定載荷 | Load capacity | Q（kg) | 1000 | 1300 | 1500 |
| 1.6 | 載荷中心距 | Load center distance | c (mm) | 500 | ||
| 1.7 | 前懸距 | centre of drive axle to fork | x (mm) | 150 | ||
| 1.8 | 軸距 | Wheelbase | y (mm) | 1203 | 1203 | 1330 |
| 重量Weight | ||||||
| 2.1 | 自重（含電瓶） | Service weight （include battery） | kg | 1590 | 1680 | 1740 |
| 2.2 | 軸負載，滿載時前/后軸 | Axle loading,laden front/rear | kg | 2110/480 | 2410/570 | 2920/320 |
| 2.3 | 軸負載，空載時前/后軸 | Axle loading,unladen front/rear | kg | 670/920 | 710/970 | 780/960 |
| 輪胎 ，底盤Types,Chassis | ||||||
| 3.1 | 輪子類型，驅動輪/承載輪 | Tyre type driving wheels/loading wheels | 聚氨酯 PU | 聚氨酯 PU | 聚氨酯 PU | |
| 3.2 | 輪子尺寸，前輪（直徑×寬度） | Tyre size,front（diameter×width） | mm | Φ250×120 | Φ250×120 | Φ250×120 |
| 3.3 | 輪子尺寸，后輪（直徑×寬度） | Tyre size ，rear（diameter×width） | mm | Φ250×75 | Φ250×75 | Φ250×75 |
| 3.4 | 驅動輪，平衡輪/承載輪數量（x=驅動輪） | Wheels, number driving，caster/ loading (x=drive wheels) | 1x,0/2 | 1x,0/2 | 1x,0/2 | |
| 3.5 | 前輪輪距 | Tread,front | b11 (mm) | 869 | 869 | 869 |
| 3.6 | 后輪距 | Thread,rear | mm | 0 | 0 | 0 |
| 尺寸 Dimensions | ||||||
| 4.1 | 門架/貨叉傾斜 前傾/后傾 | Mast/fork carriage tilt, forward/backward | a/b (°) | 2/5 | 2/5 | 2/5 |
| 4.2 | 門架縮回時高度 | Height,mast lowered | h1 (mm) | 1995 | 1995 | 1995 |
| 4.3 | 自由提升高度 | Free lift | h2 (mm) | 100 | 100 | 100 |
| 4.4 | 起升高度 | Lift height | h3 (mm) | 3000 | 3000 | 3000 |
| 4.5 | 作業時門架最大高度 | Maximum height of gantry | h4 (mm) | 3985 | 3985 | 3985 |
| 4.6 | 貨叉下降后叉面高度 | Lowered height | h13 (mm) | 35 | 35 | 35 |
| 4.8 | 站立高度 | stand height | h7 (mm) | 127 | 127 | 127 |
| 4.9 | 操作手柄在驅動位量的最小/最大高度 | Height of tiller in drive position min./max. | h14 (mm) | 1105/1440 | 1105/1440 | 1105/1440 |
| 4.10 | 整車長度 | Overall length | l1 (mm) | 2538 | 2538 | 2665 |
| 4.11 | 到貨叉垂直面的長度 | Length to face of forks | l2 (mm) | 1588 | 1588 | 1715 |
| 4.12 | 整體寬度 | Overall width | b1 (mm) | 814/998 | 814/998 | 814/998 |
| 4.13 | 貨叉尺寸 | Fork dimensions | s/ e/ l (mm) | 35/100/950 | 35/100/950 | 35/100/950 |
| 4.14 | 貨叉外寬 | Distance between fork-arms | b5 (mm) | 220-720 | 220-720 | 220-720 |
| 4.15 | 軸距中心處離地間隙 | Ground clearance, center of wheelbase | m2 (mm) | 86 | 86 | 86 |
| 4.16 | 托盤為 1200寬 × 1000長的通道寬度 | Aisle width for pallets 1000 × 1200 crossways | Ast (mm) | 2945 | 2945 | 3067 |
| 4.17 | 托盤為800寬 × 1200長的通道寬度 | Aisle width for pallets 800 × 1200 lengthways | Ast (mm) | 3055 | 3055 | 3177 |
| 4.18 | 最小轉彎半徑 | Turning radius | Wa (mm) | 1445 | 1445 | 1570 |
| 性能參數 Performance data | ||||||
| 5.1 | 行駛速度，滿載/空載 | Travel speed, laden/ unladen | km/h | 5.2/5.5 | ||
| 5.2 | 起升速度，滿載/空載 | Lifting speed, laden/ unladen | m/ s | 0.042/0.83 | 0.042/0.83 | 0.057/0.79 |
| 5.3 | 下降速度，滿載/空載 | Lowering speed, laden/ unladen | m/ s | 0.117/0.49 | 0.117/0.49 | 0.060/0.57 |
| 5.4 | 最大爬坡度，滿載/空載 | Max. gradeability, laden/unladen | % | 6/8 | 6/8 | 6/8 |
| 5.5 | 加速時間,滿載/空載 | Acceleration time with/without load | s | / | / | |
| 5.60 | 制動類型 | Service brake type | 電磁制動 Electromagnetic | |||
| 電機，動力源 Electric-engine | ||||||
| 6.1 | 驅動電機額定功率 S2 60分鐘 | Drive motor rating S2 60 min | kW | 1.7 | ||
| 6.2 | 起升電機額定功率 S3 15% | Lift motor rating at S3 15% | kW | 2.2 | ||
| 6.3 | 電瓶電壓/標稱容量 K5 | Battery voltage/nominal capacity K5 | V/Ah | 24/210 | ||
| 6.4 | 電瓶重量 | Battery weight | kg | 210 | ||
| 6.5 | 電瓶允許最大尺寸 | The maximum allowed size battery | mm | 790/210/458 | ||
| 6.6 | 能耗 ，根據VDI循環 | Energy consumption acc. to VDI cycle | kW/h | － | ||
| 其他數據 Addition data | ||||||
| 8.1 | 驅動控制類型 | Type of drive control | 交流速度控制 AC | |||
| 8.2 | 轉向類型 | Steering type | 電子助力 Electronic Assistance | |||
| 8.3 | 噪音等級 | Sound pressure level at the driver’s ear | dB(A) | ≤75 | ||
